Integrating Local LLMs with Spring AI Using LM Studio

1. Overview

Large language models (LLMs) have emerged as a key component of modern applications. While the most capable models are proprietary and hosted in a cloud environment. Accessing these models requires an internet connection and sending our application data to external providers.

For applications that process privacy-sensitive information or need to operate offline, these requirements may not be acceptable. As a result, there is a growing demand for integrating local LLMs into applications.

In this tutorial, we’ll learn how to integrate Spring AI with LM Studio and configure Spring AI to communicate with locally hosted chat and embedding models.

2. LM Studio

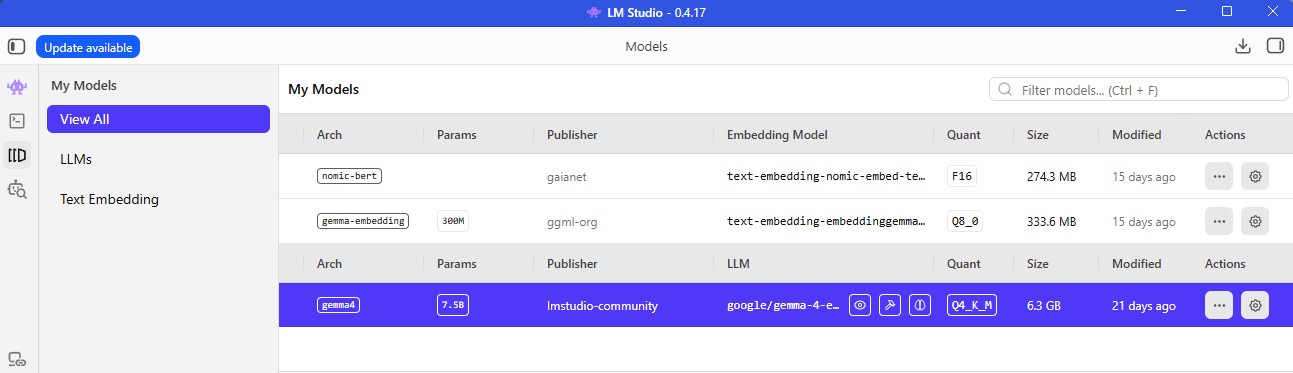

LM Studio is an application that can download, manage, and host LLMs and embedding models in our local environment. Its graphical interface allows us to browse and download models from public repositories with ease:

Besides model management, it provides an API server that exposes the loaded models via REST-based APIs. This allows AI frameworks such as Spring AI to interact with local models.

There are other applications, such as Ollama, providing similar capabilities, but with different focuses:

In general, LM Studio offers a more user-friendly experience for exploring and experimenting with local models, while Ollama is optimized for command-line workflows.

3. Maven Dependency

LM Studio provides both OpenAI-compatible and Anthropic-compatible API endpoints.

To integrate with Spring AI, we could either pick the Spring AI OpenAI dependency or the Spring AI Anthropic dependency. However, Spring AI Anthropic does not support embedding models.

Therefore, we’ll adopt the Spring AI OpenAI dependency in this tutorial:

<dependency>
    <groupId>org.springframework.ai</groupId>
    <artifactId>spring-ai-starter-model-openai</artifactId>
    <version>2.0.0</version>
</dependency>

Note that Spring AI 2.0.0 is built on Spring Framework 7 and is intended for Spring Boot 4.

4. Configuration

Let’s configure our application.yml to adopt the local models in LM Studio:

spring:
  ai:
    openai:
      api-key: dummy
      base-url: http://localhost:1234/v1
      chat:
        model: google/gemma-4-e4b
      embedding:
        model: text-embedding-embeddinggemma-300m

There are several properties worth mentioning:

api-key: We don’t really need a real API key when connecting to the local model. Thus, we just need to fill in an arbitrary value.

base-url: We could find the base URL when we start the local server in LM Studio. If we use the Spring AI OpenAI dependency, remember to append /v1 to the base URL.

model: We only need to specify the model when multiple models are loaded in LM Studio. Otherwise, we can omit this model configuration.

5. Sample Endpoints

Now, let’s create two endpoints: One for the chat model and one for the embedding model.

The controller basically delegates the work to 2 services that work with the models:

@RequestMapping("/lm-studio")
public class LmStudioController {
    private final ChatService chatService;
    private final EmbeddingService embeddingService;

    public LmStudioController(ChatService chatService, EmbeddingService embeddingService) {
        this.chatService = chatService;
        this.embeddingService = embeddingService;
    }

    @PostMapping("/chat")
    @ResponseStatus(HttpStatus.OK)
    public String chat(@RequestBody String prompt) {
        return chatService.chat(prompt);
    }

    @PostMapping("/embeddings")
    @ResponseStatus(HttpStatus.OK)
    public EmbeddingResponse getEmbeddings(@RequestBody String text) {
        return embeddingService.getEmbeddings(text);
    }
}

The ChatService uses the ChatClient to send a prompt to the configured chat model:

@Service
public class ChatService {
    private final ChatClient chatClient;

    public ChatService(ChatClient.Builder builder) {
        this.chatClient = builder.build();
    }

    public String chat(String prompt) {
        return chatClient.prompt()
          .user(userMessage -> userMessage.text(prompt))
          .call()
          .content();
    }
}

Likewise, the EmbeddingService sends the text to the configured embedding model:

@Service
public class EmbeddingService {
    private final EmbeddingModel embeddingModel;

    public EmbeddingService(EmbeddingModel embeddingModel) {
        this.embeddingModel = embeddingModel;
    }

    public EmbeddingResponse getEmbeddings(String text) {
        EmbeddingRequest request = new EmbeddingRequest(List.of(text), null);
        return embeddingModel.call(request);
    }
}

6. Test Run

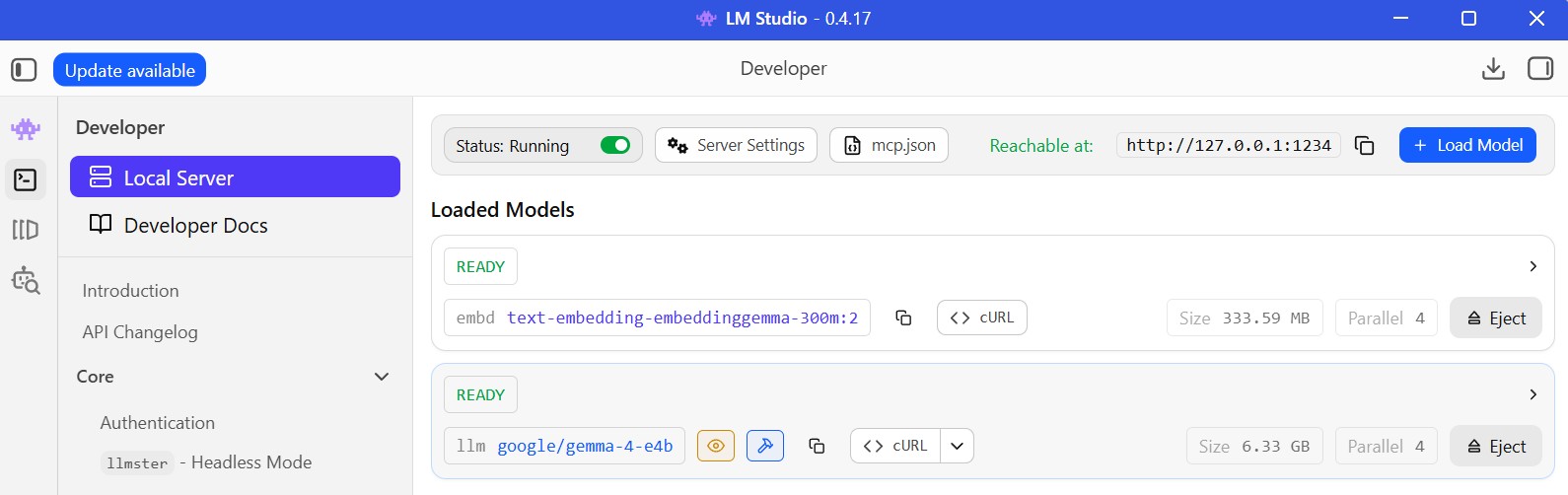

Before starting our Spring Boot application, make sure the LM Studio local server is running with both the chat model and embedding model loaded:

Now, let’s verify both the chat and embedding endpoints by initiating HTTP requests via curl.

First, we send a request to the chat endpoint:

curl -X POST http://localhost:8080/lm-studio/chat
  -d "Tell me who you are"

The request is processed by the chat model currently loaded in LM Studio. In this example, we’ve loaded Google’s Gemma 4 model, so the endpoint returns the following response:

I am Gemma 4, a Large Language Model developed by Google DeepMind.

Next, we use the chat model response as the request payload for the embedding endpoint:

curl -X POST http://localhost:8080/lm-studio/embeddings
  -d "I am Gemma 4, a Large Language Model developed by Google DeepMind."

The endpoint returns the embedding response. Since the full response is large, we’ll only show the model name and the first few elements:

{
  "metadata": {
    "model": "text-embedding-embeddinggemma-300m:2"
  },
  "result": {
    "index": 0,
    "output": [
      -0.07699633,
      -0.030751443,
      0.019093497,
      ...
    ]
  }
}

These results confirm that Spring AI successfully invokes the locally hosted chat model and the embedding model via LM Studio’s OpenAI-compatible API.

7. Conclusion

In this article, we learned how to integrate Spring AI with LM Studio to use a locally hosted chat model and embedding model. We configured Spring AI to work with the open-source models via LM Studio’s OpenAI-compatible API.

LM Studio is a perfect choice for running AI models without relying on a cloud provider. This approach keeps your data within the local environment and enables it to operate without an internet connection. These make it ideal for privacy-sensitive applications.

As always, the complete code examples are available over on GitHub.
