Set Datasource When Creating Hibernate SessionFactory in Java

1. Overview

In modern Java applications, Hibernate rarely manages database connections on its own. Instead, applications rely on a Datasource for connection pooling, lifecycle management, and consistent performance. This model fits naturally with Spring Boot, where infrastructure components are typically auto-configured and externally managed.

There are cases, however, where we need explicit control over how the SessionFactory is created and how it consumes the Datasource. This usually comes up when customizing Hibernate bootstrapping, working with multiple databases, or integrating Hibernate outside the standard JPA setup.

In this article, we configure Hibernate in native mode and let Spring Boot handle only the Datasource and application lifecycle. JPA and Spring Data JPA auto-configuration are disabled to avoid overlapping infrastructure. We’ll walk through the core concepts, configuration options, and complete Spring Boot examples with JUnit tests.

2. Core Concepts Behind SessionFactory and Datasource

Before we jump into Spring Boot configuration, we must align on how Hibernate and Spring divide responsibilities. At a high level, Spring manages infrastructure components such as the Datasource, while Hibernate focuses on ORM concerns and database interaction through the SessionFactory:

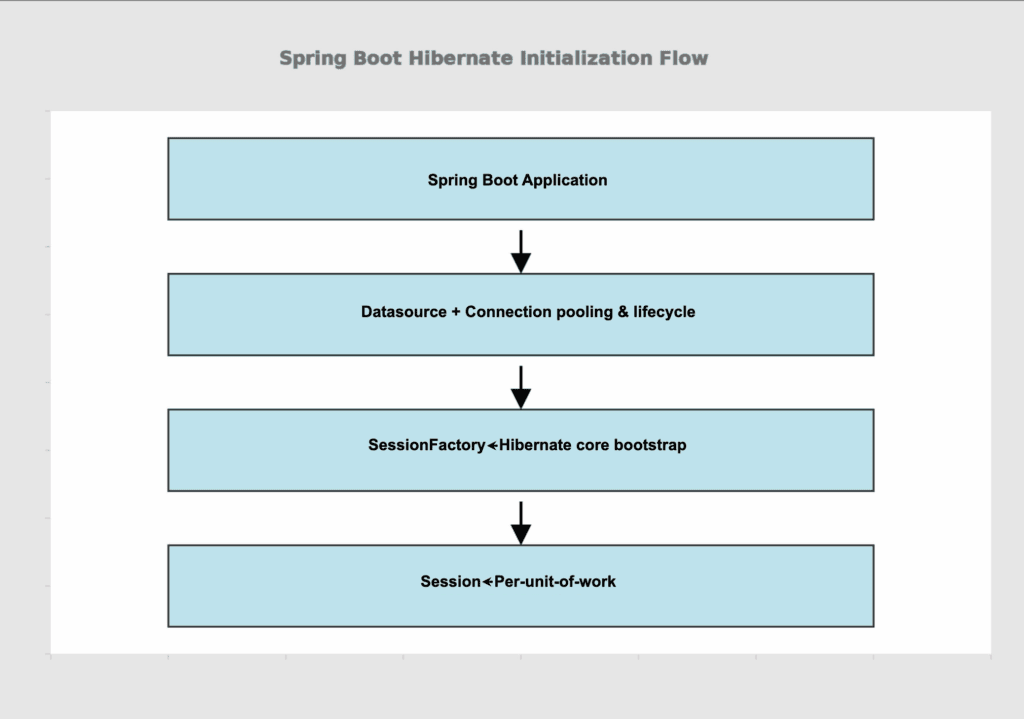

The diagram illustrates Hibernate session management flow in Spring Boot, starting from application bootstrap through layered components for efficient database access. This sequence ensures proper initialization of heavyweight components like SessionFactory while enabling lightweight per-request Sessions.

2.1. The Role of SessionFactory in Hibernate

The SessionFactory is Hibernate’s main entry point. It stores configuration metadata and creates Session instances used to interact with the database. Since it’s expensive to create, we initialize it once at startup and reuse it throughout the application.

When we opt out of JPA auto-configuration, Hibernate no longer builds this component for us. As a result, we must wire the SessionFactory explicitly and provide all required dependencies, including the Datasource.

2.2. Why Datasource Matters?

A Datasource encapsulates JDBC connection management and usually provides connection pooling. Hibernate relies on it to obtain connections instead of managing them directly, which improves stability and scalability.

Spring Boot exposes the Datasource as a managed bean. Once available, Hibernate can consume it directly, regardless of whether the application uses auto-configuration or a fully manual setup.

3. Datasource Handling in Spring Boot

Spring Boot already creates a Datasource if database properties are present. What we’re really controlling is how Hibernate consumes that Datasource when building the SessionFactory.

3.1. Default Behavior Versus Manual Configuration

By default, Spring Boot auto-configures Hibernate using spring.jpa properties and wires the Datasource automatically. This works well for most applications.

When we want full control over Hibernate bootstrapping, however, we can define our own SessionFactory bean and inject the Datasource explicitly. This gives us programmatic control over Hibernate properties and startup behavior. A minimal example of injecting the Datasource looks like this:

@Bean
SessionFactory sessionFactory(DataSource dataSource) {
    StandardServiceRegistry registry =
      new StandardServiceRegistryBuilder()
        .applySetting("hibernate.connection.datasource",dataSource)
        .build();

    Metadata metadata =
      new MetadataSources(registry).buildMetadata();

    return metadata.buildSessionFactory();
}

Here, we explicitly inject the Spring-managed Datasource into Hibernate’s SessionFactory. By defining this bean ourselves, we bypass Spring Boot’s JPA-driven setup and take full control over how Hibernate is initialized, while still benefiting from Spring’s connection management.

3.2. Restricting JPA Auto-Configuration

Spring Boot enables JPA infrastructure automatically. This includes the creation of an EntityManagerFactory and related beans.

Since this article focuses on native Hibernate usage, JPA auto-configuration must be disabled explicitly. Doing so prevents Spring from creating unused infrastructure and avoids conflicts during startup.

4. Spring Boot Configuration Example

Let’s walk through a complete Spring Boot-based example that explicitly sets the Datasource when creating the Hibernate SessionFactory.

4.1. Maven Dependencies

We’ll use spring-boot-starter-jdbc, hibernate-core, H2, and JUnit. The versions below are stable and commonly used:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jdbc</artifactId>
    <version>3.2.4</version>
</dependency>
<dependency>
    <groupId>org.hibernate.orm</groupId>
    <artifactId>hibernate-core</artifactId>
    <version>6.4.4.Final</version>
</dependency>
<dependency>
    <groupId>com.h2database</groupId>
    <artifactId>h2</artifactId>
    <version>2.2.224</version>
    <scope>runtime</scope>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-test</artifactId>
    <version>3.2.4</version>
    <scope>test</scope>
</dependency>

At this point, we intentionally avoid Spring Data JPA and rely only on spring-boot-starter-jdbc for Datasource creation. This setup provides everything we need to bootstrap Hibernate, configure a Datasource, and run integration tests.

4.2. Application Properties

Spring Boot creates the Datasource based on standard configuration properties:

spring.datasource.url=jdbc:h2:mem:testdb;DB_CLOSE_DELAY=-1
spring.datasource.username=sa
spring.datasource.password=
spring.datasource.driver-class-name=org.h2.Driver
spring.jpa.hibernate.ddl-auto=create-drop
spring.jpa.show-sql=true

However, in this setup, we don’t need to define the above Datasource configuration explicitly. Spring Boot still auto-creates an in-memory H2 database and provides a usable Datasource for Hibernate. These properties shown here are included only to highlight this distinction.

Since JPA auto-configuration is disabled, JPA-specific properties such as spring.jpa.hibernate.ddl-auto and spring.jpa.show-sql are ignored, and equivalent behavior is configured programmatically instead.

4.3. Disabling JPA Infrastructure

Before defining the Hibernate SessionFactory, we’ll disable JPA and Spring Data JPA auto-configuration. This ensures that Spring Boot does not attempt to create an EntityManagerFactory or related JPA infrastructure beans:

@SpringBootApplication(
    exclude = {
        HibernateJpaAutoConfiguration.class,
        JpaRepositoriesAutoConfiguration.class
    }
)
public class HibernateSessionFactoryDemoApplication {
    public static void main(String[] args) {
        SpringApplication.run(HibernateSessionFactoryDemoApplication.class, args);
    }
}

This configuration preserves Spring Boot’s datasource auto-configuration while preventing the initialization of JPA-specific beans. As a result, Hibernate operates in native mode and relies solely on the explicitly configured SessionFactory.

4.4. Explicit SessionFactory Configuration

Now we’ll define a configuration class that creates the Hibernate SessionFactory using the Spring-managed Datasource:

@Configuration
public class HibernateConfig {

    @Bean
    SessionFactory sessionFactory(DataSource dataSource) {
        StandardServiceRegistry registry =
           new StandardServiceRegistryBuilder()
             .applySetting("hibernate.connection.datasource", dataSource)
             .applySetting("hibernate.hbm2ddl.auto", "create-drop")
             .applySetting("hibernate.show_sql", true)
             .build();

        MetadataSources sources = new MetadataSources(registry);

        return sources.buildMetadata().buildSessionFactory();
    }

}

In this configuration, Spring automatically injects the Datasource bean. We then pass that Datasource to Hibernate using the hibernate.connection.datasource setting. Starting with Hibernate 6, the SQL dialect is automatically detected from the JDBC connection metadata. Explicitly setting the dialect is no longer required. This ensures that all database connections originate from Spring’s connection pool.

5. Validating the Configuration With JUnit

To make sure everything works as expected, we’ll write a Spring Boot test that verifies the SessionFactory can open a Hibernate Session:

@SpringBootTest
public class SessionFactoryUnitTest {

    @Autowired
    private SessionFactory sessionFactory;

    @Test
    void givenSessionFactory_whenOpeningSession_thenSessionIsCreated() {

        try (Session session = sessionFactory.openSession()) {
            assertNotNull(session);
        }
    }
}

This test starts the Spring context, loads our custom SessionFactory bean, and verifies that Hibernate can successfully obtain a database connection through the configured Datasource. If the wiring were incorrect, this test would fail early during context initialization or session creation.

This test succeeds because JPA infrastructure has been explicitly disabled. Spring Boot loads the application context, provides the Datasource, and injects the custom Hibernate SessionFactory without attempting to create an EntityManagerFactory. This confirms that Hibernate is operating in native mode while still benefiting from Spring Boot’s lifecycle and configuration management.

6. Usage Scenarios and Design Considerations

This explicit configuration style is useful when we need tighter control over how Hibernate is initialized and connected to the infrastructure. While Spring Boot’s defaults cover most use cases, certain scenarios benefit from making these relationships explicit.

We commonly apply this approach when customizing Hibernate behavior, working with multiple datasources, or aligning Hibernate startup with other system components:

7. Conclusion

Setting a Datasource when creating a Hibernate SessionFactory in Java becomes straightforward once we understand how Spring Boot and Hibernate interact. By allowing Spring to manage the Datasource and explicitly wiring it into Hibernate, we gain clarity, control, and flexibility without sacrificing stability.

In this article, we explored the core concepts behind SessionFactory and Datasource, examined how Spring Boot manages database connectivity, and implemented a complete configuration with integration tests. By disabling JPA auto-configuration and wiring the Datasource directly into Hibernate, we avoid hidden framework behavior and ensure that the application uses exactly the persistence infrastructure we configure.

This approach scales well from simple applications to more complex architectures, giving us confidence that Hibernate is using the exact connection setup we expect. As always, the code for this example is available over on GitHub.
